Tribus - 22kW
Charging Capacity: 22 kW (1 hour charging delivers up to 120 km of range)
Outlet Port: Single
Input Supply: 3-Phase (32A)
Connector: Type 2 Socket
Cable: Optional
Compatibility: All EVs
Usage Billing: Yes, Via ‘Smart Charge’ Software
Warranty: 1 year
Please allow atleast 1 business day for us to process and dispatch your order.
Charging Capacity: 22 kW (1 hour charging delivers up to 120 km of range)
Outlet Port: Single
Input Supply: 3-Phase (32A)
Connector: Type 2 Socket
Cable: Optional
Compatibility: All EVs
Usage Billing: Yes, Via ‘Smart Charge’ Software
Warranty: 1 year
Please allow atleast 1 business day for us to process and dispatch your order.
Charging Capacity: 22 kW (1 hour charging delivers up to 120 km of range)
Outlet Port: Single
Input Supply: 3-Phase (32A)
Connector: Type 2 Socket
Cable: Optional
Compatibility: All EVs
Usage Billing: Yes, Via ‘Smart Charge’ Software
Warranty: 1 year
Please allow atleast 1 business day for us to process and dispatch your order.

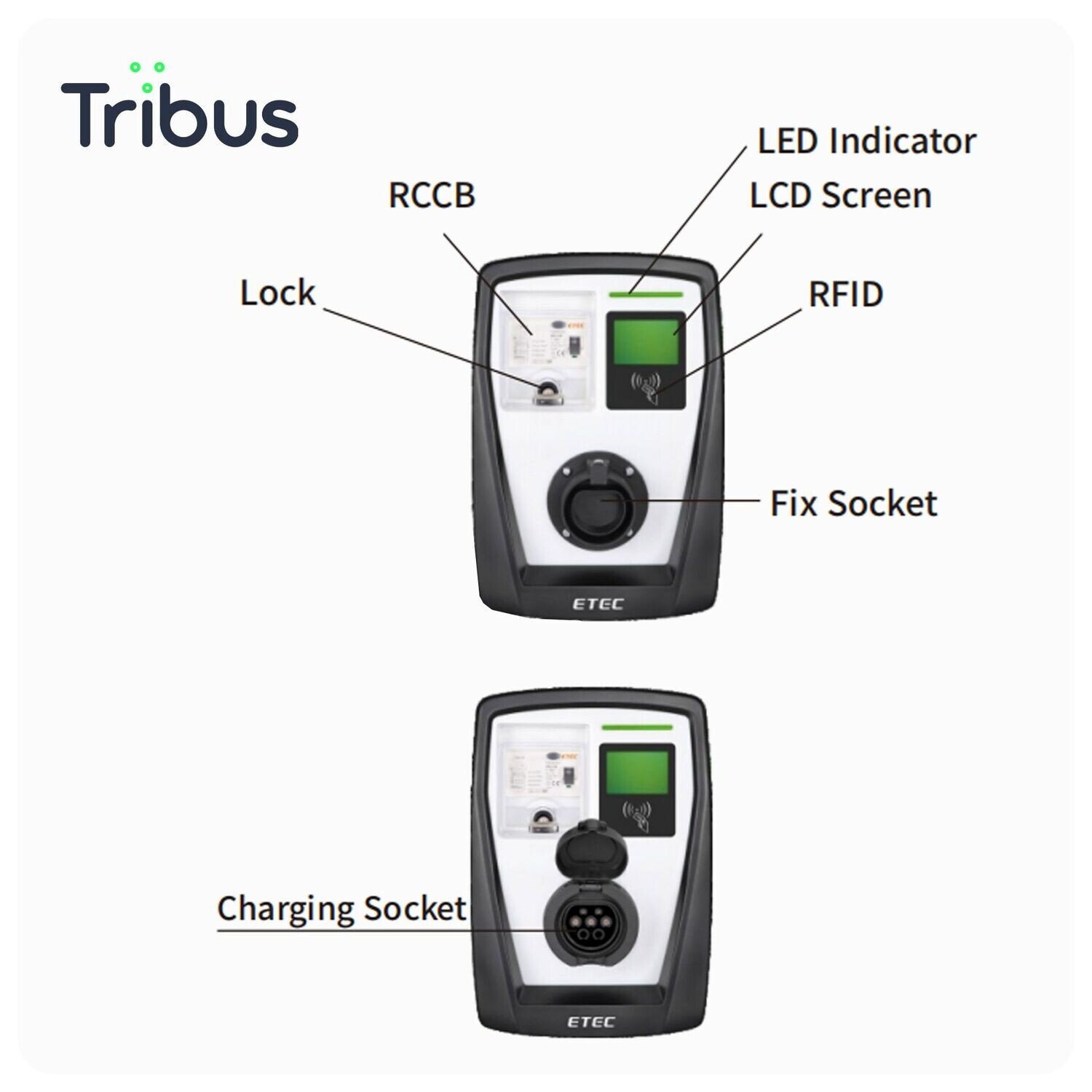

The TRIBUS Single 22kW charger is a high-performance, versatile solution ideal for both Apartment and commercial applications.
SPECIFICATION
Operating Temperature: -25°C to +50°C
Operating Humidity: Max. 95% RH, non-condensing
Weather Proofing: IP55 (Indoor/Outdoor)
Impact Resistance: IK08
Weight: 3.5 kg
Dimension: 600 x 255 x 410 mmm (HxWxD)
Connectivity: Wi-Fi and Built-in 4G SIM with no additional data cost
Protocol: OCPP 1.6
Software: ‘Smart Charge’ App
Authorisation: By RFID Card or via App
Smart Charging: Adjusting max. current, charging profiles, dynamic load balancing (via MAX protocol)
-
The key terms of the warranty for the Tribus Chargers supplier are as follows:
(a) We do not accept returns for change of mind or other circumstances. However, you may have rights to a repair, replacement, or refund under the Australian Consumer Law.
(b) Nothing in these Terms attempts to modify or exclude the conditions, warranties and undertakings, and other legal rights, under the Australian Consumer Law (Consumer Law Rights). All other warranties or conditions which are not guaranteed by the Australian Consumer Law are expressly excluded where permitted, except to the extent such warranties and conditions are fully expressed in these Terms.
(c) Where you return products to us to seek an Australian Consumer Law remedy, you will need to cover any associated costs (for example delivery costs) of you returning the products to us.
(d) Where your claim is a valid claim under the Australian Consumer Law, we will refund your return delivery costs and, depending on the failure, either dispatch a new or repaired replacement product or refund you the Price of the relevant product.
