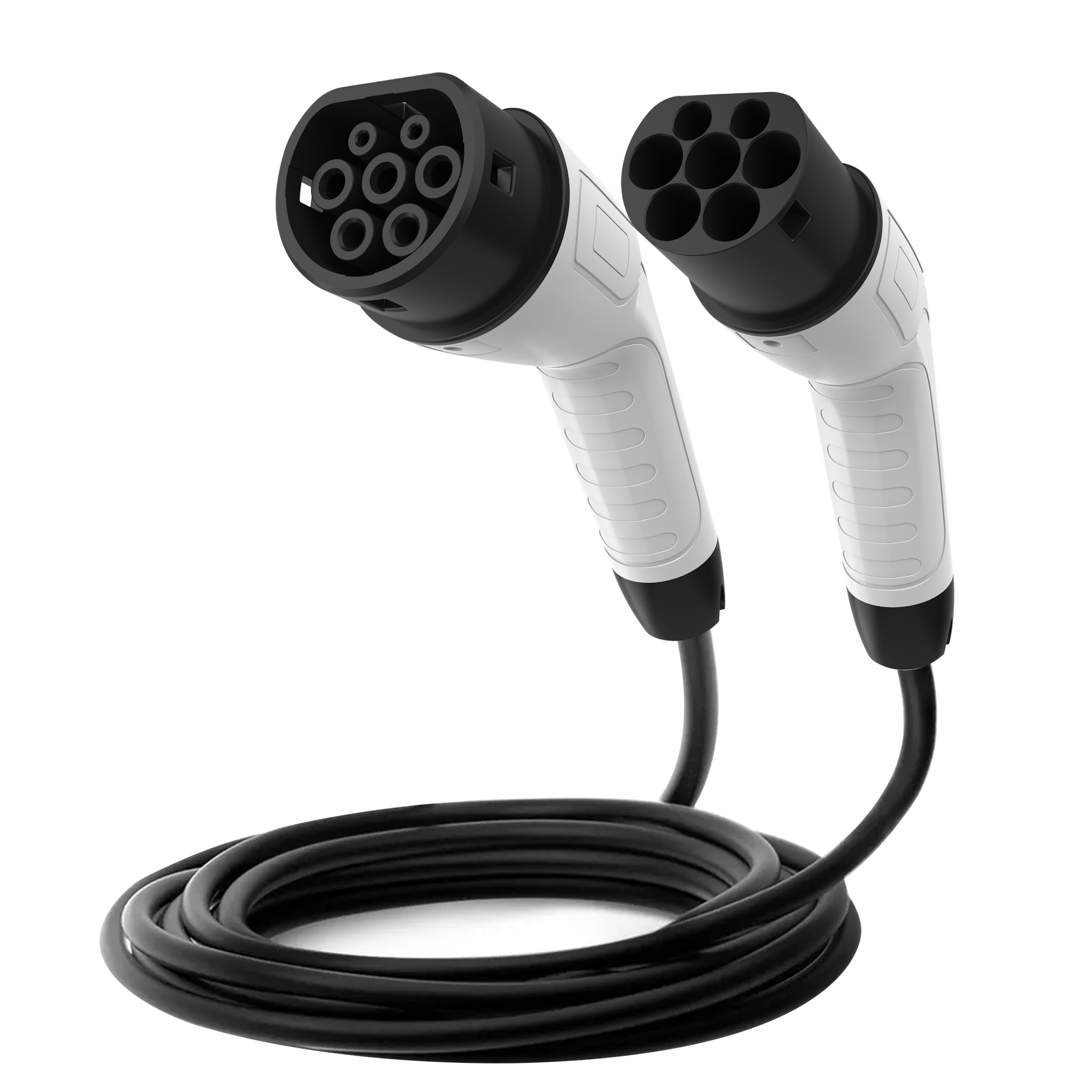

General-purpose charging cable – Type 2 (5 m) for 22kW charger
Power & Current: 22kW, supports 16A–32A, 3-phase
Cable Length: 5 metres
Build Quality: Copper alloy pins with silver plating; ABS+PC flame-retardant shell (UL94 V-0)
Weather Resistance: IP55 rating
Electrical Safety:
Insulation resistance >1000MΩ (DC500V)
Withstand voltage: 2000V
Contact resistance: ≤0.5mΩ
Operating Temperature: -30°C to +50°C
Warranty: 3-year limited warranty
Compatibility: Suitable for all Type 2 EVs
