Autel MaxiCharger DH240

$0.00

  • Charging Capacity: 80kW / 120kW / 160kW / 200kW / 240kW (configurable)

  • Outlet Port: 2 (dual simultaneous charging)

  • Connector: 2 × CCS2

  • Cable Length: 5m standard (7.5m optional)

  • Input Voltage: 3-phase 400V AC ±10%

  • Input Frequency: 50Hz / 60Hz

  • Output Voltage: 150-1000V DC

  • Output Current: Uncooled Cable: 380A (Max. 500A)

  • Compatibility: All CCS2-compatible electric vehicles with ISO/IEC 15118 Plug & Charge support

  • Warranty: 24 months (extension available)

  • Charging Capacity: 80kW / 120kW / 160kW / 200kW / 240kW (configurable)

  • Outlet Port: 2 (dual simultaneous charging)

  • Connector: 2 × CCS2

  • Cable Length: 5m standard (7.5m optional)

  • Input Voltage: 3-phase 400V AC ±10%

  • Input Frequency: 50Hz / 60Hz

  • Output Voltage: 150-1000V DC

  • Output Current: Uncooled Cable: 380A (Max. 500A)

  • Compatibility: All CCS2-compatible electric vehicles with ISO/IEC 15118 Plug & Charge support

  • Warranty: 24 months (extension available)

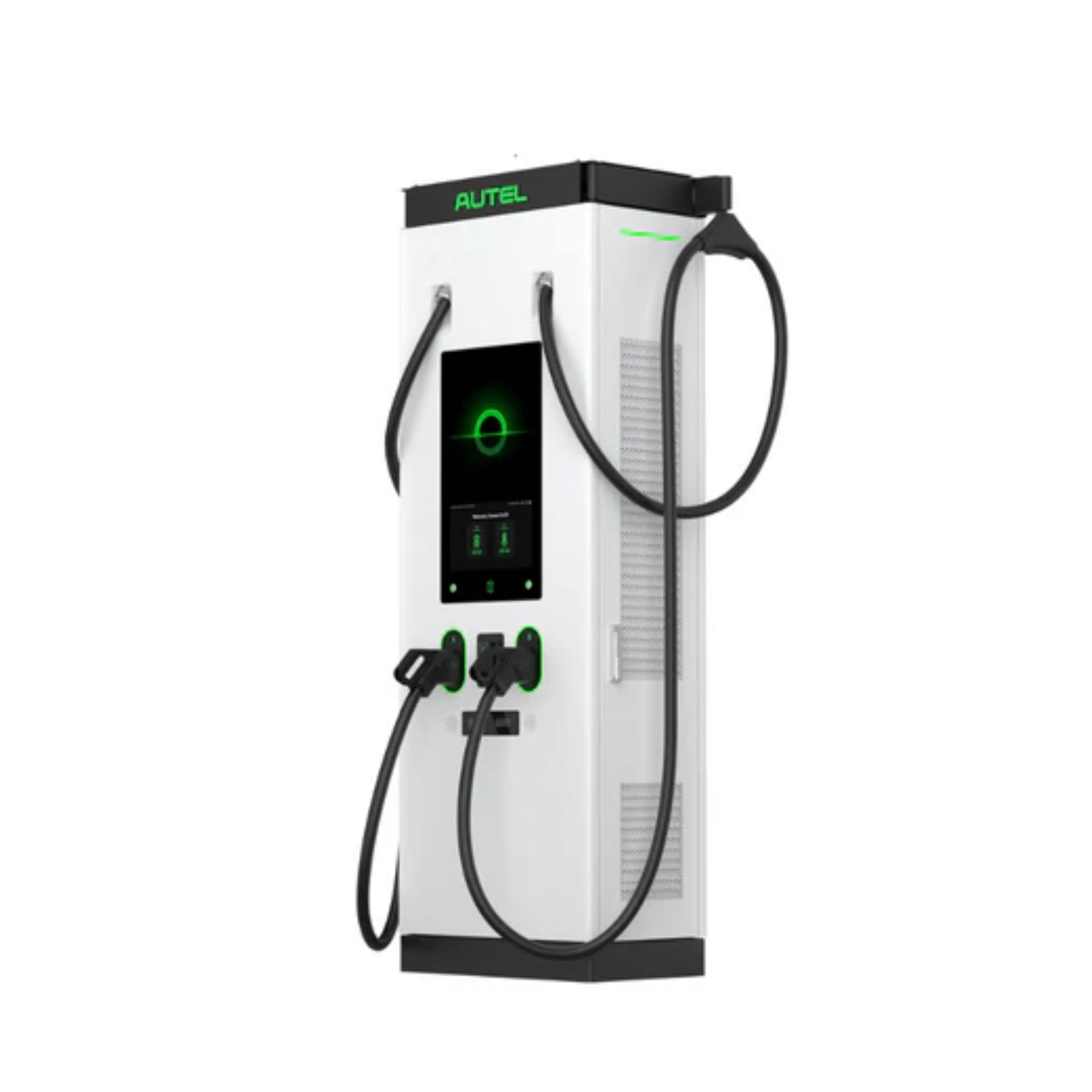

AUTEL MAXICHARGER DH240 (DUAL)

The Autel MaxiCharger DH240 is a next-generation DC fast charging solution engineered for high-traffic commercial sites, fleets, and public charging networks. Delivering up to 240 kW of power, it can recharge compatible EVs to 80% in minutes, adding up to 62 miles of range in just 5 minutes with optional 400A boost cables.

Built for flexibility and reliability, the DH240 features dual CCS2 outputs for simultaneous charging, a large 27-inch high-resolution touchscreen for an intuitive user experience, and ISO 15118 Plug & Charge capability for seamless authentication and payment. With dynamic load balancing, OCPP compliance, and remote monitoring capabilities, it offers operators a powerful, scalable platform with exceptional ROI.

Flexible Use Cases:

  • Fleet Depots & Commercial Fleets — Dual simultaneous outputs for efficient rapid charging of multiple fleet vehicles

  • Public Charging Networks — Ultra-fast DC charging for high-traffic locations requiring quick turnover

  • Service Stations & Motorway Services — Fast top-ups for long-distance travelers with minimal dwell time

  • Busy Car Parks & Shopping Centres — High-power charging for customers during short shopping visits (30-60 minutes)

SPECIFICATIONS

  • Dimensions (W x H x D): 782 x 2150 x 480 mm

  • Weight: 630 kg

  • Screen Type: 27-inch LCD Touch Screen

Screen Capability

  • Large 27-inch″ LCD supports:

    • Operator branding

    • Site messaging or static promotions

Advertising & Revenue

  • Image for free

  • video at cost

  • Enables additional revenue streams for site owners and charge-point operator

  • Mounting: Floor standing

  • Peak Efficiency: ≥ 96% at nominal output

  • Power Factor: 0.99 at nominal output

  • Operating Temperature: -35°C to +55°C

  • Weather Proofing: IP54

  • Impact Resistance: IK10

  • Connectivity: Dual SIM 4G, 5G, Wi-Fi, Ethernet

  • Status Indication: LED / LCD / APP / MaxiCloud Platform

  • Protocols: OCPP 1.6 & OCPP 2.0.1

  • User Authentication: APP, RFID card, QR code, Credit card (optional)

  • Emergency Stop Button: Yes, included

  • Load Management: Compatible/supported

  • Function Access Control: Yes (ISO 15118 Plug & Charge supported)
