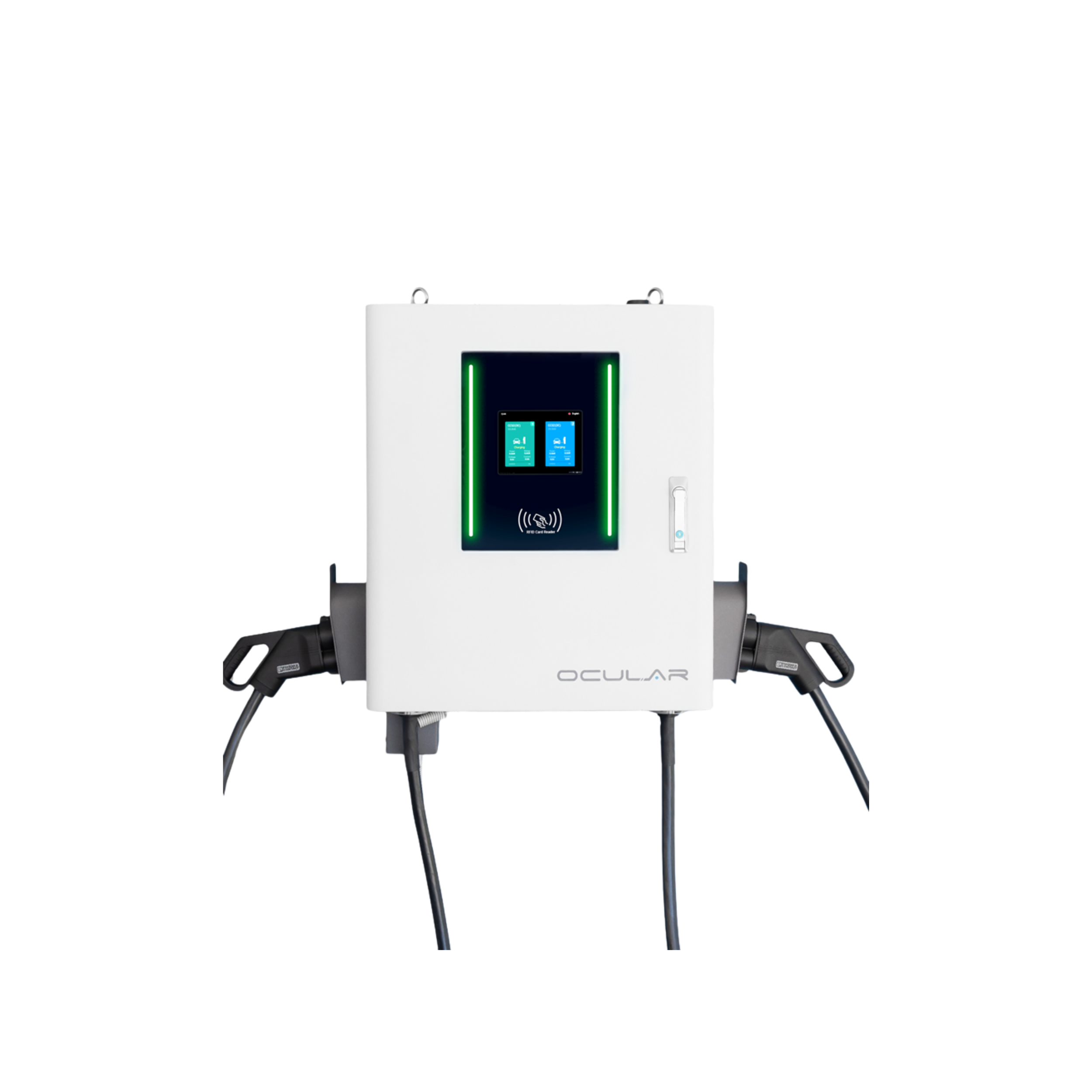

Ocular DC Titan Charger (30 kW / 60 kW)

$0.00

  • Charging Capacity: 30 kW / 60 kW DC

  • Outlet Ports: 30 kW: Single output / 60 kW: Dual output

  • Connector: CCS2 (standard); CHAdeMO (optional on request)

  • Cable Length: 5 m standard (other lengths available on request)

  • Output Voltage: 150–1000 V DC (vehicle dependent)

  • Output Current: 30 kW: Max 100 A DC per port / 60 kW: Max 200 A DC per port

  • Compatibility: Compatible with all CCS2 EVs; CHAdeMO optional

  • Warranty: 2 years (extended warranties available)

  • Charging Capacity: 30 kW / 60 kW DC

  • Outlet Ports: 30 kW: Single output / 60 kW: Dual output

  • Connector: CCS2 (standard); CHAdeMO (optional on request)

  • Cable Length: 5 m standard (other lengths available on request)

  • Output Voltage: 150–1000 V DC (vehicle dependent)

  • Output Current: 30 kW: Max 100 A DC per port / 60 kW: Max 200 A DC per port

  • Compatibility: Compatible with all CCS2 EVs; CHAdeMO optional

  • Warranty: 2 years (extended warranties available)

Experience the ultimate in fast and reliable charging with the Ocular Atlas. Charges two EVs simultaneously with advanced safety features and live feedback display. Built to withstand any weather conditions. Simplify monitoring, analysis, and billing with the online platform. Trust the Ocular Atlas for a reliable and efficient charging experience.

SPECIFICATIONS

  • Operating Temperature: -30°C to +50°C

  • Weather Proofing: IP54

  • Impact Resistance: IK10 (screen IK08)

  • Connectivity: Ethernet, 4G (standard size SIM), Modbus (TCP/IP)

  • Status Indication: 8-inch TFT LCD touchscreen / backend platform

  • Protocols: OCPP 1.6J / OCPP 2.0.1

  • User Authentication: Mobile app, RFID, Autocharge, physical button

  • Emergency Stop Button: Yes — push button

  • Load Management: Compatible with Ocular Load Controller and OCPP smart charging profiles

  • Dimensions (H × W × D): 770 × 690 × 355 mm

  • Weight: 30 kW: 75 kg / 60 kW: 85 kg

  • Screen Type: 8-inch TFT LCD touch screen

  • Screen Capability: Charging control, charging status monitoring, backend integration, and billing support

  • Advertising & Revenue: Optional Nayax credit card payment module for commercial billing integration

  • Mounting: Wall-mounted or floor-mounted via optional pedestal

  • Efficiency: 94%

  • Power Factor: ≥ 0.99
