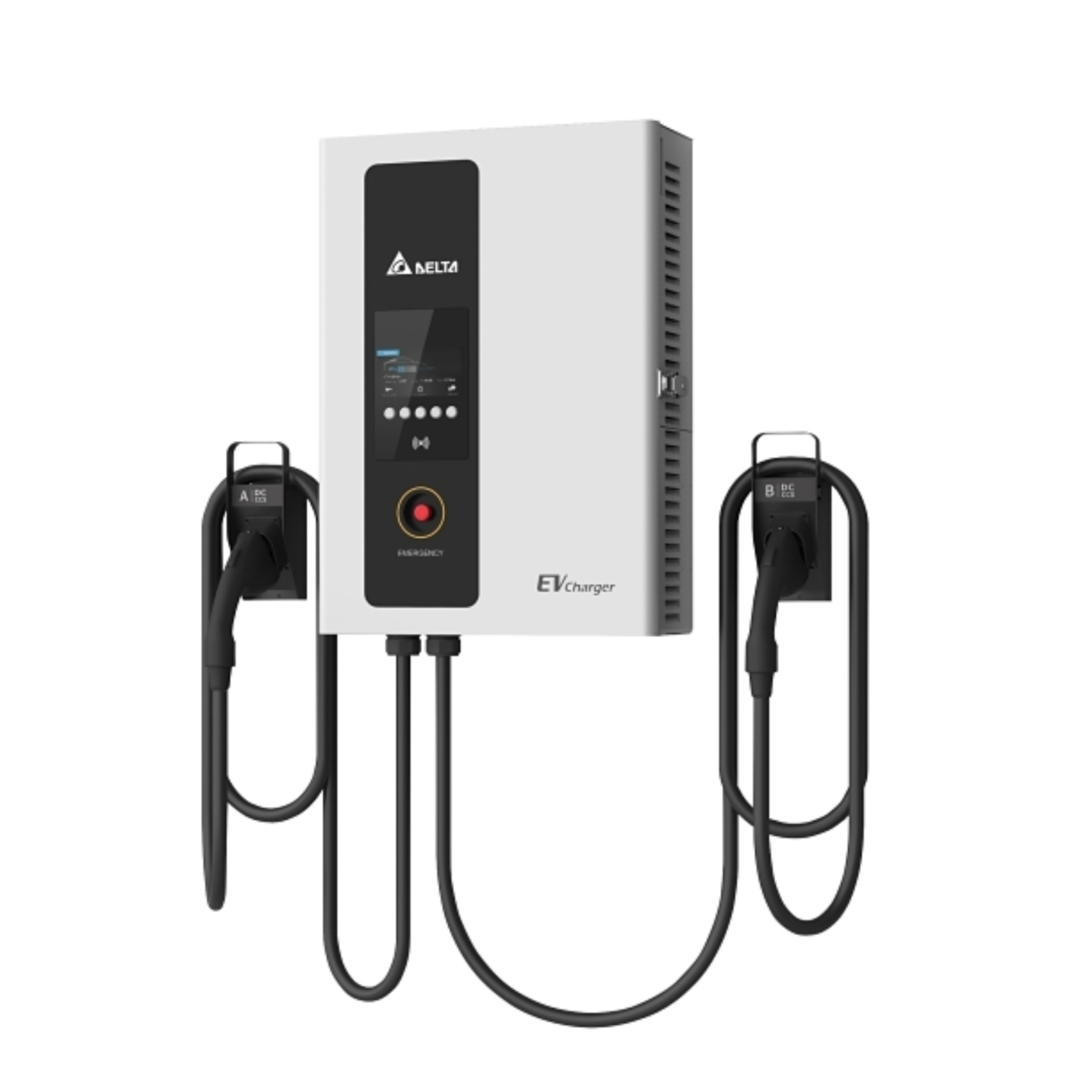

Delta DC Wallbox EV Charger 50kW CCS2 and CHAdeMO.png
Delta DC Wallbox EV Charger 50kW CCS2 and CHAdeMO.png

Delta DC Wallbox 50kW

$0.00

Charging Capacity: 50 kW (DC); up to 72 kW total system with AC

Outlet Port: 2 DC + 1 AC (up to 3 simultaneous outputs)

Connector: CCS2, CHAdeMO, Type 2 AC Socket (configurable)

Input Voltage: 230 V / 400 V, 3-Phase + N + PE

Input Frequency: 50–60 Hz

Compatibility: All EVs

Warranty: 24 months (extended plans available)

Charging Capacity: 50 kW (DC); up to 72 kW total system with AC

Outlet Port: 2 DC + 1 AC (up to 3 simultaneous outputs)

Connector: CCS2, CHAdeMO, Type 2 AC Socket (configurable)

Input Voltage: 230 V / 400 V, 3-Phase + N + PE

Input Frequency: 50–60 Hz

Compatibility: All EVs

Warranty: 24 months (extended plans available)

Delta DC Wallbox 50 kW – Slim & Smart

The DC Wallbox 50 kW is a compact, high-efficiency charging solution for commercial sites, delivering ≥ 96% efficiency in a slim 25 cm design. Simultaneous DC charging across two guns plus an optional 22 kW AC Type 2 socket makes it ideal for roadside parking, shopping centres, office buildings and EV depots — without major space modifications.

Flexible Use Cases:

•    Roadside Parking – Slim profile fits tight footpaths and parking bays

•    Shopping Centres & Offices – Dwell-time DC charging with optional AC output for mixed vehicles

•    Service Stations – Ad-hoc payment via integrated credit-card terminal for public charging

•    EV Depots – Multiple units for compact fleet charging lines

SPECIFICATIONS

•       Dimensions (W x H x D): 1200 x 650 x 250 mm

•       Weight: 102 kg (excluding connectors)

•       Mounting: •    Wall-mount or stand-based (indoor / outdoor rated)

•       Charging Mode: •    up to 2 x DC (CCS2 + CCS2 or CCS2 + CHAdeMO) + optional 1 x AC Type 2

•       Output Voltage: •    200 – 920 V DC (CCS) / 200 – 500 V DC (CHAdeMO)

•       Output Current: •    166 A (CCS) / 125 A (CHAdeMO); AC 32 A per phase (22 kW)

•       Peak Efficiency: 94% at nominal output

•       Power Factor: 0.99 at nominal output

•       Enclosure Rating: IP55, IK10

•       Screen Type: 2.7-inch OLED Display

•       Status Indication: LED / OLED

•       Connectivity: Ethernet (standard), 3G (optional)

•       Communication Protocols: OCPP 1.6

•       User Authentication: RFID (ISO/IEC 14443 A/B)

•       Cooling: Forced air

•       Operating Temperature: -25°C to +50°C

•       Certification: •    CE, RCM; IEC 61851-1/-22/-23/-24, DIN 70121, IEC 62196-3, EN 55011, DIN 18040
