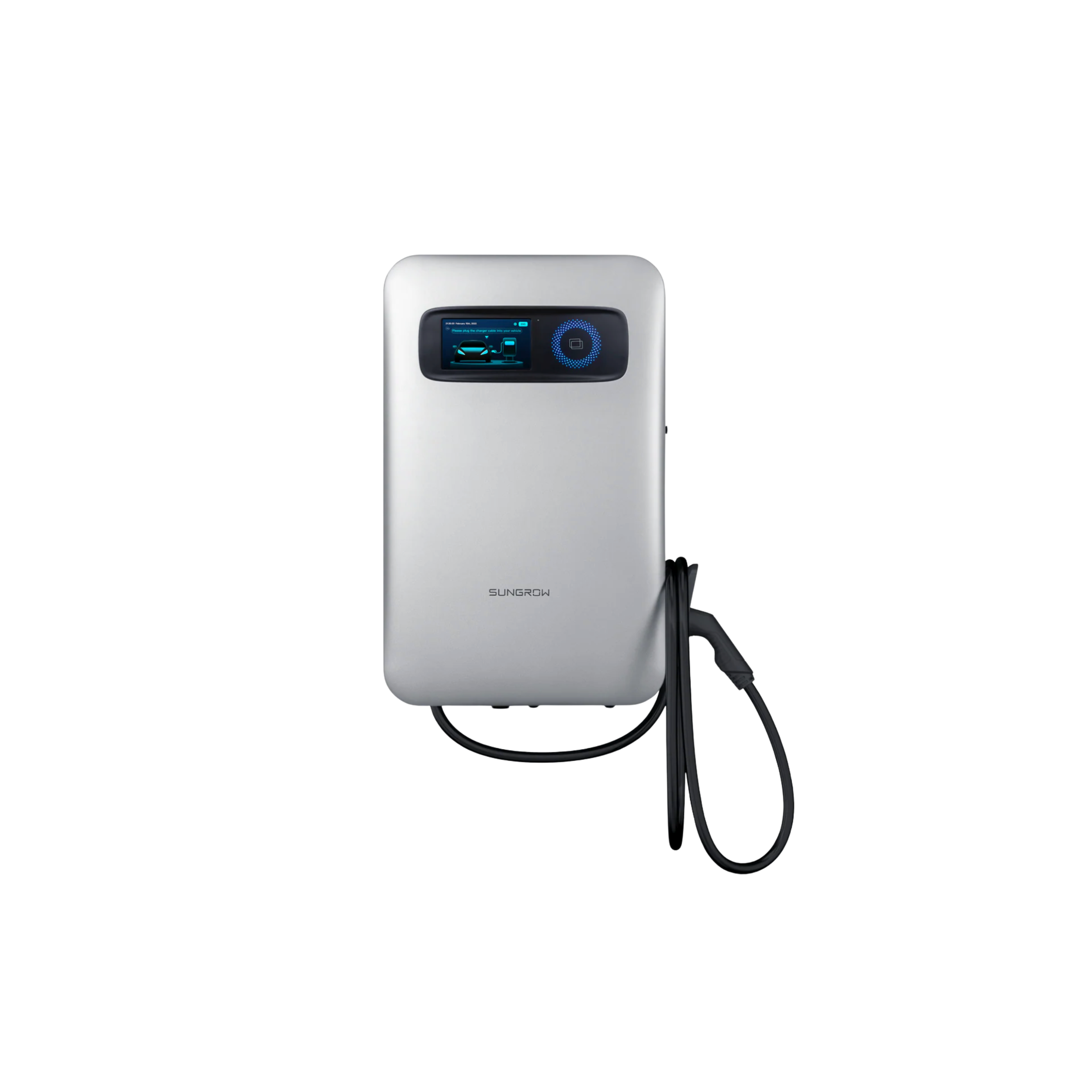

Sungrow IDC30E 30kW

$0.00

  • Charging Capacity: 30kW (DC)

  • Outlet Port: Single

  • Connector: CCS2 (standard)

  • Cable Length: 5 meters (standard)

  • Output Voltage: 200–1000 Vdc

  • Output Current: Up to 80A per outlet

  • Compatibility: All EVs

  • Warranty: 36 months

  • Charging Capacity: 30kW (DC)

  • Outlet Port: Single

  • Connector: CCS2 (standard)

  • Cable Length: 5 meters (standard)

  • Output Voltage: 200–1000 Vdc

  • Output Current: Up to 80A per outlet

  • Compatibility: All EVs

  • Warranty: 36 months

The Sungrow IDC30E is a premium wall-mounted DC fast charger delivering up to 30kW – approximately 14 times faster than a standard domestic socket. With a robust IP65/IK10 enclosure, C5 anti-corrosion rating, and OCPP 1.6J connectivity (ready for OCPP 2.0.1), it is the ideal high-performance charging solution for commercial, fleet, and residential applications demanding reliability, smart energy management, and long-term durability.

Flexible Use Cases:

  • Commercial & Workplace – Smart dynamic load management ensures efficient, cost-optimised charging for business premises

  • Small to Medium Fleets – Ideal for vans, utes, and light commercial EVs requiring fast, dependable turnaround

  • Apartments & Strata – EMC Class B certified for shared DC charging in multi-dwelling environments with minimal electrical interference

  • Coastal & Harsh Environments – C5 anti-corrosion and IP65 protection make it uniquely suited to marine, industrial, and exposed outdoor locations

  • Service Stations & Highway Rest Stops – Quiet operation (≤50 dB(A)), a large 7-inch touch display, and flexible authentication options deliver a premium user experience at high-traffic sites

SPECIFICATIONS

  • Operating Temperature: -35°C to +55°C

  • Weather Proofing: IP65

  • Impact Resistance: IK10

  • Connectivity: Ethernet, Cellular (4G), WLAN

  • Status Indication: 7-inch colour touch screen with backend monitoring platform

  • Protocols: OCPP 1.6J / Ready for OCPP 2.0.1

  • User Authentication: RFID card reader, Plug & Play, Auto-charge

  • Emergency Stop Button: Yes, integrated on all units

  • Load Management: Dynamic load management supported

  • Function Access Control: Yes

  • Dimensions (WxHxD): 500 × 800 × 242 mm

  • Weight: 53 kg

  • Screen Type: 7-inch colour touch screen

  • Screen Capability: Charging status monitoring, user interface control, and multi-language support

  • Advertising & Revenue: Supports backend commercial charging management, remote monitoring, OTA firmware updates via iEnergyCharge, and OCPP backend systems

  • Mounting: Wall-mounted (optional stand column and trolley available)
