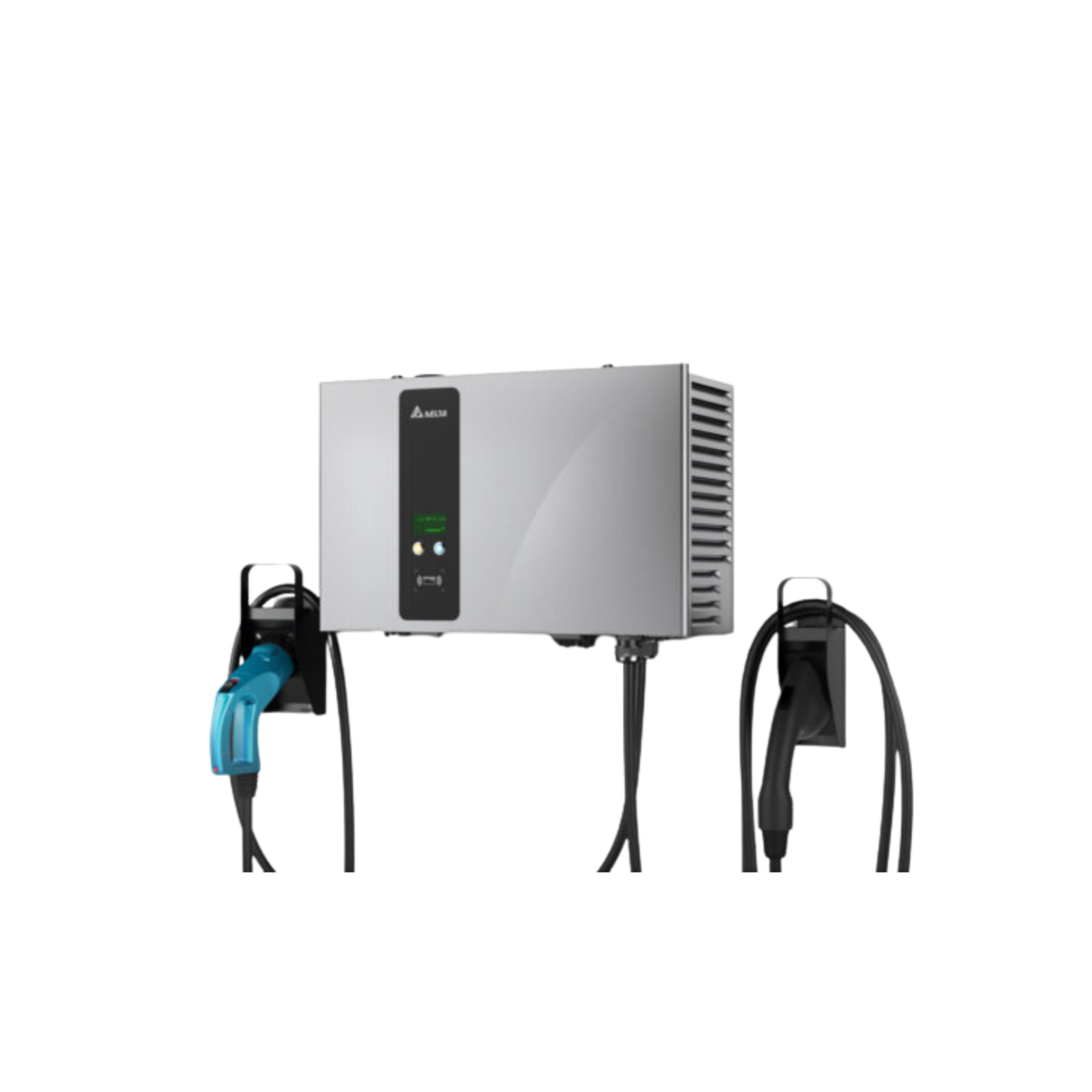

Delta DC Wallbox 25kW

$0.00

  • Charging Capacity: 25 kW (DC)

  • Outlet Port: 1 (single vehicle at a time)

  • Connector: CCS2 + CHAdeMO (standard); CCS2 only also available

  • Cable Length: 4 m (standard); 7 m (optional)

  • Input Voltage: 380–415 V, 3-Phase + N + PE

  • Input Frequency: 50–60 Hz

  • Output Voltage: 50–500 V DC

  • Output Current: Up to 60 A per outlet

  • Compatibility: All EVs

  • Warranty: 24 months (extended plans available)

  • Charging Capacity: 25 kW (DC)

  • Outlet Port: 1 (single vehicle at a time)

  • Connector: CCS2 + CHAdeMO (standard); CCS2 only also available

  • Cable Length: 4 m (standard); 7 m (optional)

  • Input Voltage: 380–415 V, 3-Phase + N + PE

  • Input Frequency: 50–60 Hz

  • Output Voltage: 50–500 V DC

  • Output Current: Up to 60 A per outlet

  • Compatibility: All EVs

  • Warranty: 24 months (extended plans available)

Delta Compact Entry-Level DC Charger

The Delta DC Wallbox is a popular entry-level, wall-mounted DC fast charger delivering up to 25kW – approximately 12 times faster than a standard domestic socket. With a compact IP55/IK10 enclosure, OCPP 1.6J connectivity and dual-standard CCS2 / CHAdeMO outputs available, it is the ideal bridge between slow AC charging and higher-cost 50kW+ chargers for commercial, fleet and premium residential applications.

Flexible Use Cases:

•       Commercial & Workplace – Cost-effective mid-speed charging for business premises

•       Small Fleets – Ideal for vans, utes and light commercial EVs

•       Apartments & Strata – Shared DC charging in multi-dwelling car parks

•       Service Stations & Highway Rest Stops – Entry-level DC charging at smaller sites

SPECIFICATIONS

  • Dimensions (W x H x D): 680 x 430 x 230 mm

  • Weight: 53 kg (excluding connectors)

  • Screen Type: 2.7-inch OLED Display

  • Mounting: Wall-mount or stand-based (indoor / outdoor rated)

  • Peak Efficiency: 94% at nominal output

  • Power Factor: 0.99 at nominal output

  • Operating Temperature: -30°C to +50°C

  • Weather Proofing: IP55

  • Impact Resistance: IK10

  • Connectivity: Ethernet (standard), 4G SIM (optional)

  • Status Indication: LED

  • Protocols: OCPP 1.6J

  • Emergency Stop Button: Yes, included

  • Load Management: Compatible/supported

  • Function Access Control: Yes (RFID — ISO/IEC 14443 A/B)
