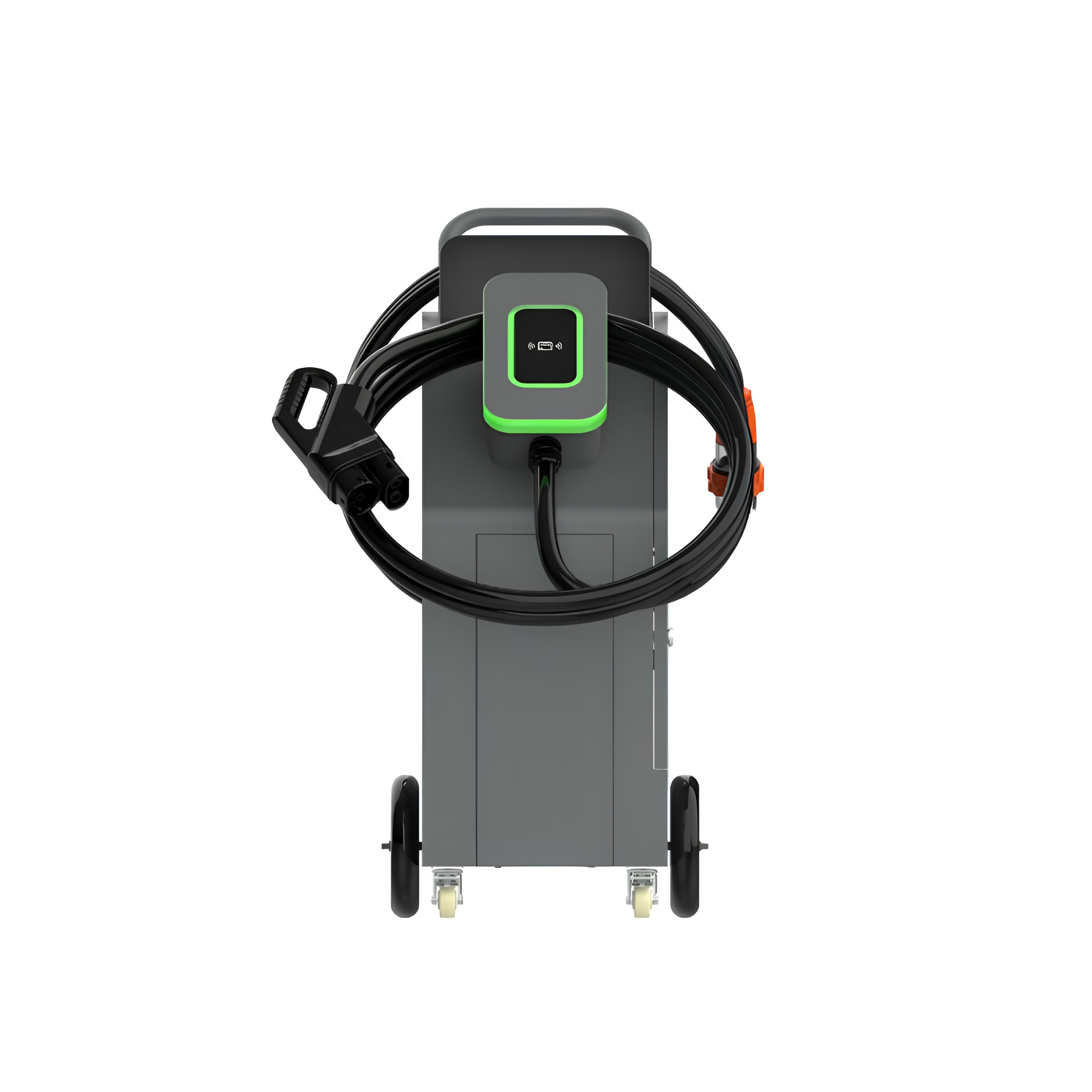

Ocular Roam V2 Portable DC Charger

$0.00

  • Charging Capacity: 20/30/40kW (DC)

  • Outlet Port: Single

  • Connector: CCS2

  • Cable Length: 5 metres (standard)

  • Output Voltage: 200 – 1000 Vdc

  • Output Current: Up to 80A per outlet

  • Compatibility: All CCS2-compatible EVs

  • Warranty: 36 months

  • Charging Capacity: 20/30/40kW (DC)

  • Outlet Port: Single

  • Connector: CCS2

  • Cable Length: 5 metres (standard)

  • Output Voltage: 200 – 1000 Vdc

  • Output Current: Up to 80A per outlet

  • Compatibility: All CCS2-compatible EVs

  • Warranty: 36 months

The Ocular Roam V2 is a versatile portable DC fast charger delivering up to 40kW – approximately 19 times faster than a standard domestic socket. With a rugged IP55/IK10 enclosure, lockable wheels for easy transportation, and full OCPP 2.0.1 & 1.6J connectivity, it is the ideal flexible charging solution for sites where permanent infrastructure is not yet available or where mobility is essential.

Flexible Use Cases:

  • Events & Temporary Sites – Fully portable design with lockable wheels makes it perfect for pop-up charging at events, festivals, and construction sites

  • Small to Medium Fleets – Ideal for depots, yards, and fleet operators requiring flexible, relocatable fast charging

  • Commercial & Workplace – Cost-effective high-speed charging for business premises without permanent installation commitments

  • Service Stations & Highway Rest Stops – Entry-level DC fast charging at smaller or interim sites ahead of permanent infrastructure upgrades

    • Operating Temperature: -30°C to +55°C

    • Weather Proofing: IP55

    • Impact Resistance: IK10

    • Connectivity: Ethernet, Cellular (4G)

    • Status Indication: 7-inch LCD touch screen with backend monitoring

    • Protocols: OCPP 2.0.1 & OCPP 1.6J full profiles support

    • User Authentication: RFID card reader, OCPP mobile app, touch screen

    • Load Management: OCPP Smart Charging supported

    • Function Access Control: Yes

    • Dimensions (WxHxD): 451.6 Ă— 984 Ă— 842.4 mm

    • Screen Type: 7-inch LCD touch screen

    • Screen Capability: Charging status monitoring and user interface control

    • Advertising & Revenue: Supports backend commercial charging management, remote monitoring, payment integration, and OCPP backend systems

    • Mounting: Portable with lockable wheels (optional wall-mounting available)

  • Ocular Roam V2 Portable DC Charger
