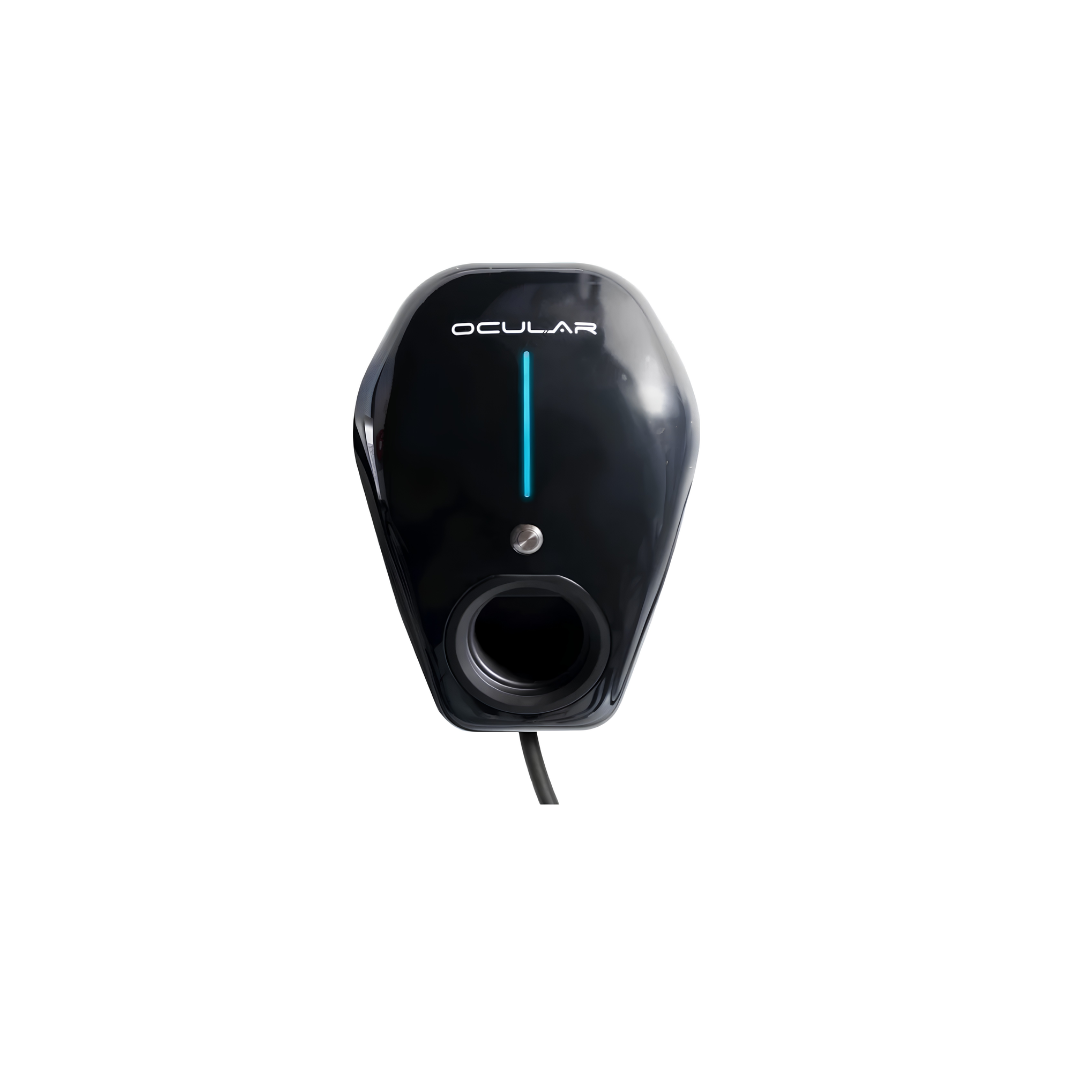

Ocular LTE Plus - 7kW

$795.00
  • Charging Capacity: 7 kW (1 hour of charging delivers up to 40km of range)

  • Outlet Port: Single

  • Input Supply: Single-Phase (32A)

  • Connector: Type 2 Socket

  • Cable: Tethered cable (6 meter)

  • Compatibility: All EVs

  • Usage Billing: Yes

  • Warranty: 2 years

Please allow atleast 1 business day for us to process and dispatch your order.

  • Charging Capacity: 7 kW (1 hour of charging delivers up to 40km of range)

  • Outlet Port: Single

  • Input Supply: Single-Phase (32A)

  • Connector: Type 2 Socket

  • Cable: Tethered cable (6 meter)

  • Compatibility: All EVs

  • Usage Billing: Yes

  • Warranty: 2 years

Please allow atleast 1 business day for us to process and dispatch your order.

EV Charger standard Installation (Single phase) in NSW EV Charger standard Installation (Single phase) in NSW EV Charger standard Installation (Single phase) in NSW EV Charger standard Installation (Single phase) in NSW EV Charger standard Installation (Single phase) in NSW
Cable run:

The Ocular LTE Plus 7kW combines a compact, beautifully designed charging station with a class-leading 3.5" LCD screen for live feedback on your charging session. With its intuitive Bluetooth app, you get session scheduling, power consumption monitoring, and data export capabilities — giving you complete control over your charging experience. Ideal for residential use, the LTE Plus offers smart grid savings by allowing you to schedule your charging times when electricity rates are lower. The tethered 6-meter Type-2 cable provides plug-and-charge convenience, while the IP55 rating ensures reliable outdoor and indoor performance.

With multiple control options including mobile app, physical button, and start-on-plug functionality, the LTE Plus delivers a user-friendly charging experience. For advanced commercial applications, OCPP 1.6J compatibility is available via ethernet connection.

👉 Positioning: Mid-range residential charger with smart scheduling and monitoring capabilities — offering Bluetooth app control, session scheduling, live LCD feedback, and power consumption tracking for homeowners who want control over their charging experience. Features basic smart capabilities (scheduling, monitoring, data export) but does not include solar integration, dynamic load management, or advanced energy optimization features.


SPECIFICATIONS


  • Solar Compatibility

❌ Not solar compatible
❌ No solar optimisation or excess solar charging
❌ No energy management capability

Positioning:
No solar capability (non-solar charger)

  • Operating Temperature: -30℃ to +55℃

  • Weather Proofing: IP55

  • Impact Resistance: IK10

  • Weight: 6.5 kg (with 6m Type-2 cable)

  • Dimension: 318 x 200 x 80 mm (H x W x D)

  • Connectivity: Bluetooth (Mobile App), Ethernet (OCPP only)

  • Protocol: OCCP 1.6J

  • Display: 3.5” LCD Screen + LED indication lights

  • Charger Control Method: Mobile app (Bluetooth), physical button, start on plug OCPP (1.6J via ethernet only, additional configuration required)
