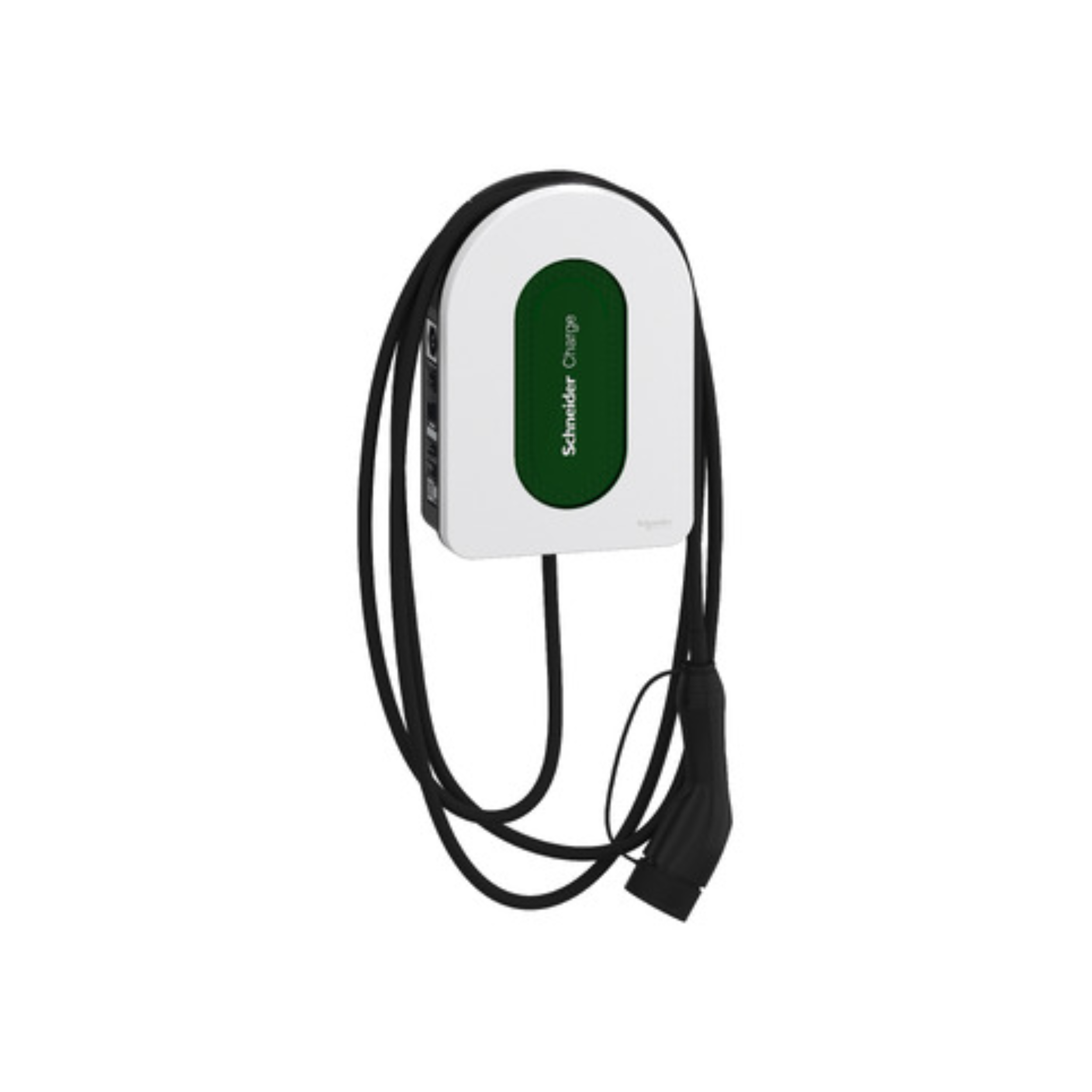

Charging station, Schneider Charge, 1P+N, attached cable 5m, 7.4kW, 32A.png
Charging station, Schneider Charge, 1P+N, attached cable 5m, 7.4kW, 32A.png

Schneider Tethered

from $1,400.00
kW and Cable Options:

  • Charging Capacity: 7.4 kW & 11 kW (1 hour of charging delivers approximately 40 & 60 km of range)

  • Outlet Port: Single

  • Input Supply: Single-phase 32A , Three-phase 16A

  • Connector: Type 2 Socket

  • Cable: Tethered (5 and 7 meters)

  • Compatibility: All EVs

  • Usage Billing: Yes

  • Warranty: 1 year

  • Please allow atleast 1 business day for us to process and dispatch your order.

  • Charging Capacity: 7.4 kW & 11 kW (1 hour of charging delivers approximately 40 & 60 km of range)

  • Outlet Port: Single

  • Input Supply: Single-phase 32A , Three-phase 16A

  • Connector: Type 2 Socket

  • Cable: Tethered (5 and 7 meters)

  • Compatibility: All EVs

  • Usage Billing: Yes

  • Warranty: 1 year

  • Please allow atleast 1 business day for us to process and dispatch your order.

EV Charger standard Installation (Single phase) in NSW EV Charger standard Installation (Single phase) in NSW EV Charger standard Installation (Single phase) in NSW EV Charger standard Installation (Single phase) in NSW EV Charger standard Installation (Single phase) in NSW
EV Charger standard Installation (Single phase) in NSW
from $800.00
Cable run:
EV Charger standard Installation (Three phase) in NSW EV Charger standard Installation (Three phase) in NSW EV Charger standard Installation (Three phase) in NSW EV Charger standard Installation (Three phase) in NSW EV Charger standard Installation (Three phase) in NSW
EV Charger standard Installation (Three phase) in NSW
from $1,000.00
Cable run:

Reliable, safe, and easy to use, this smart EV charger is suitable for both indoor and outdoor installation. It supports load balancing to help manage power usage and can be controlled through the app or smart charging software. Available in 7kW and 11kW options, it is compatible with all EVs using a Type 2 cable.

👉 Positioning: A smart and flexible EV charging solution for homes, apartments, and commercial sites.

SPECIFICATIONS

  • Solar Compatibility

    ✔ Can integrate with solar and smart home systems through external platforms

    ✔ Suitable for energy-efficient home charging

    ❌ No native built-in excess solar charging

    ❌ No dedicated solar-only charging mode

    ❌ No direct inverter-native solar optimisation

  • Positioning

    No direct solar optimization.

  • Operating Temperature: −30°C to +55°C (5m) / −35°C to +55°C (7m)

  • Weather Proofing: IP55

  • Impact Resistance: IK10

  • Weight: 7kW with 5m cable: 4.5 kg ; 7kW with 7m cable: 5.3 kg

  • 11kW with 5m cable: 4.4 kg ; 11kW with 7m cable: 5.1 kg

  • Dimension (H × W × D): 352 mm × 244 mm × 117 mm

  • Connectivity: Wi-Fi, Ethernet (LAN)

  • Charger Control Method: Plug & Play, App (Wiser Home) · OCPP-compatible third-party back-end

  • Protocol: OCPP 1.6 (for connection to Schneider Electric Wiser app)

  • Supports smart charging and scheduling

  • Dynamic load management capability (depending on setup)
