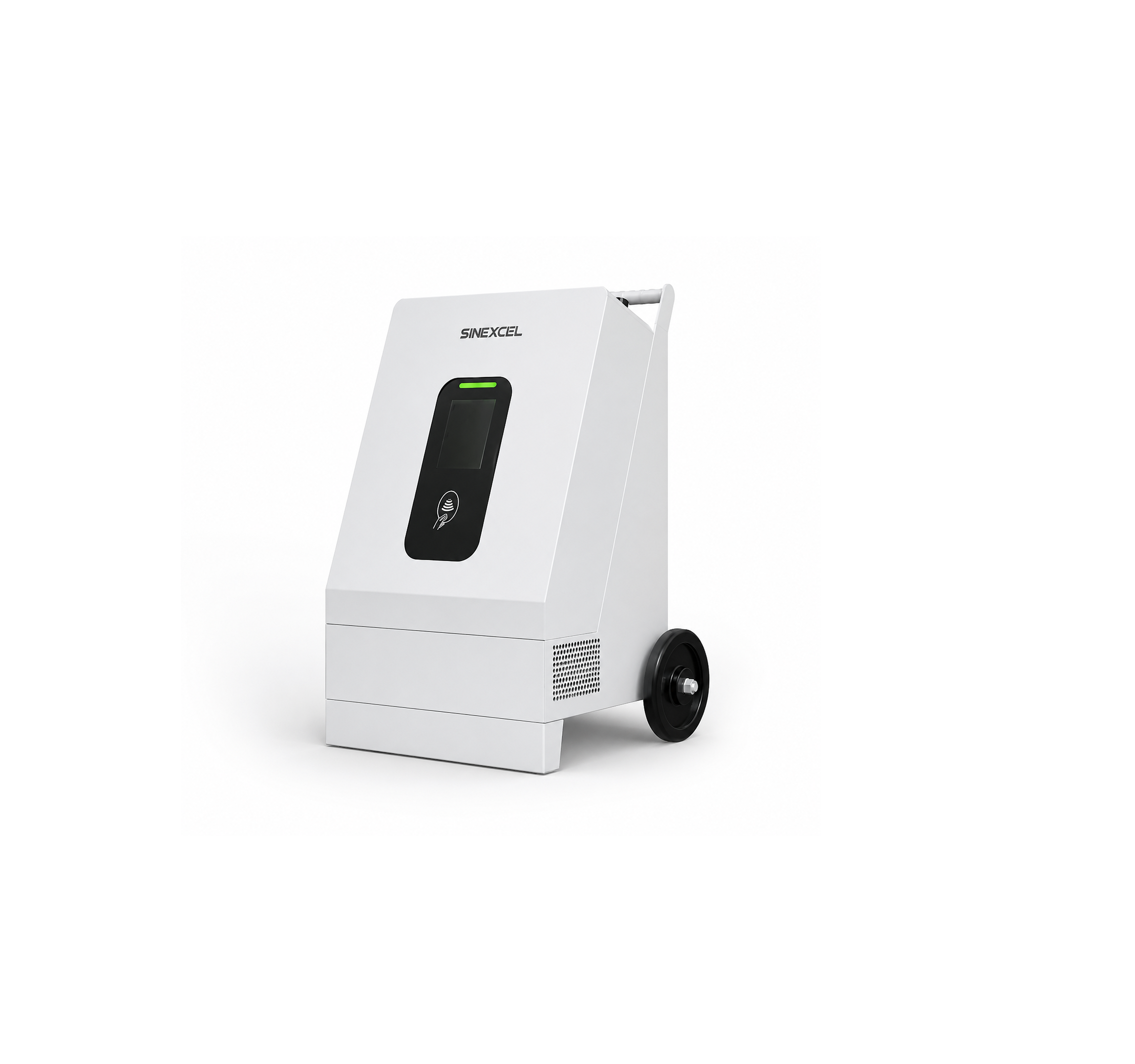

Portable SINEXCEL 30kW DC charger.png

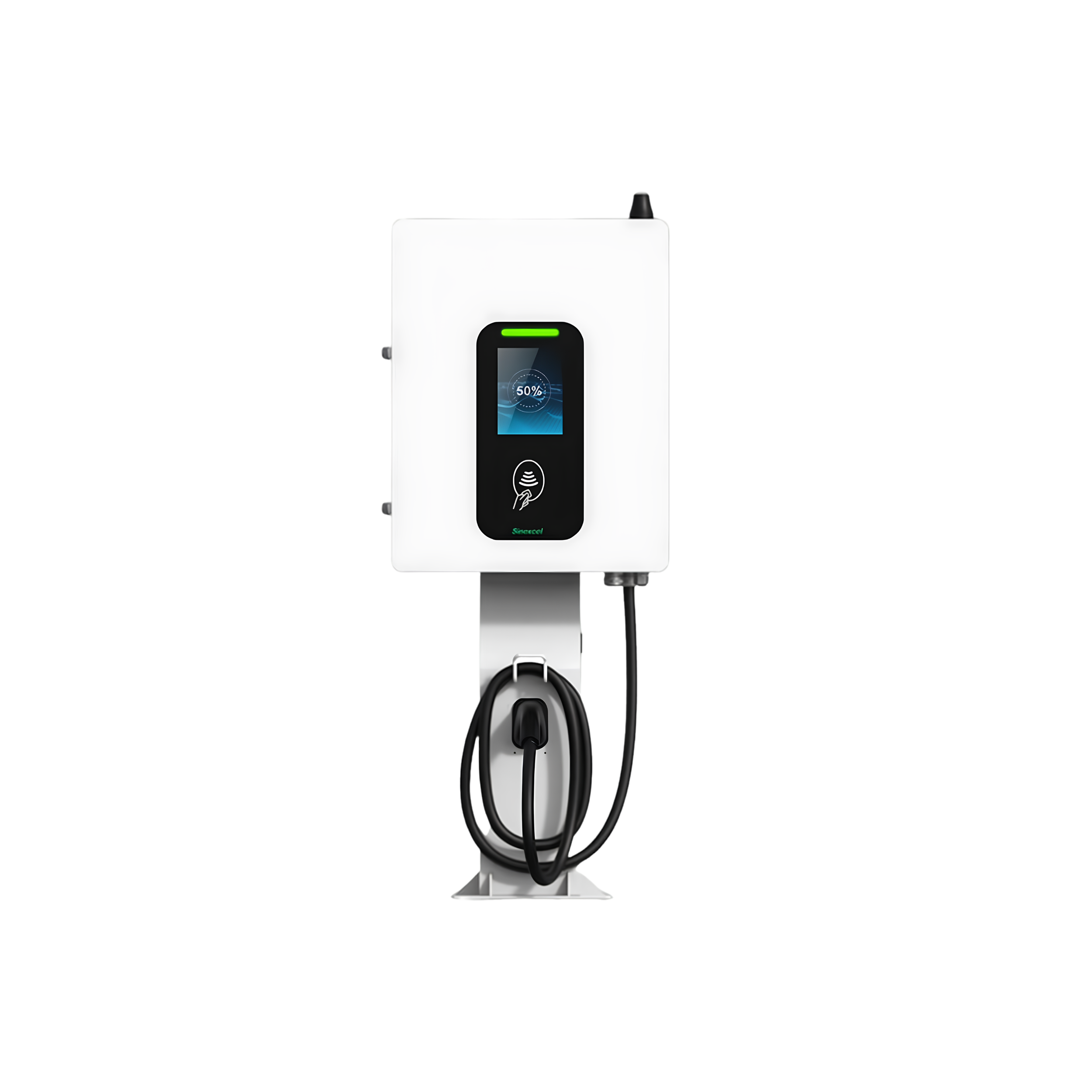

30kW DC Integrated DC Charger.png

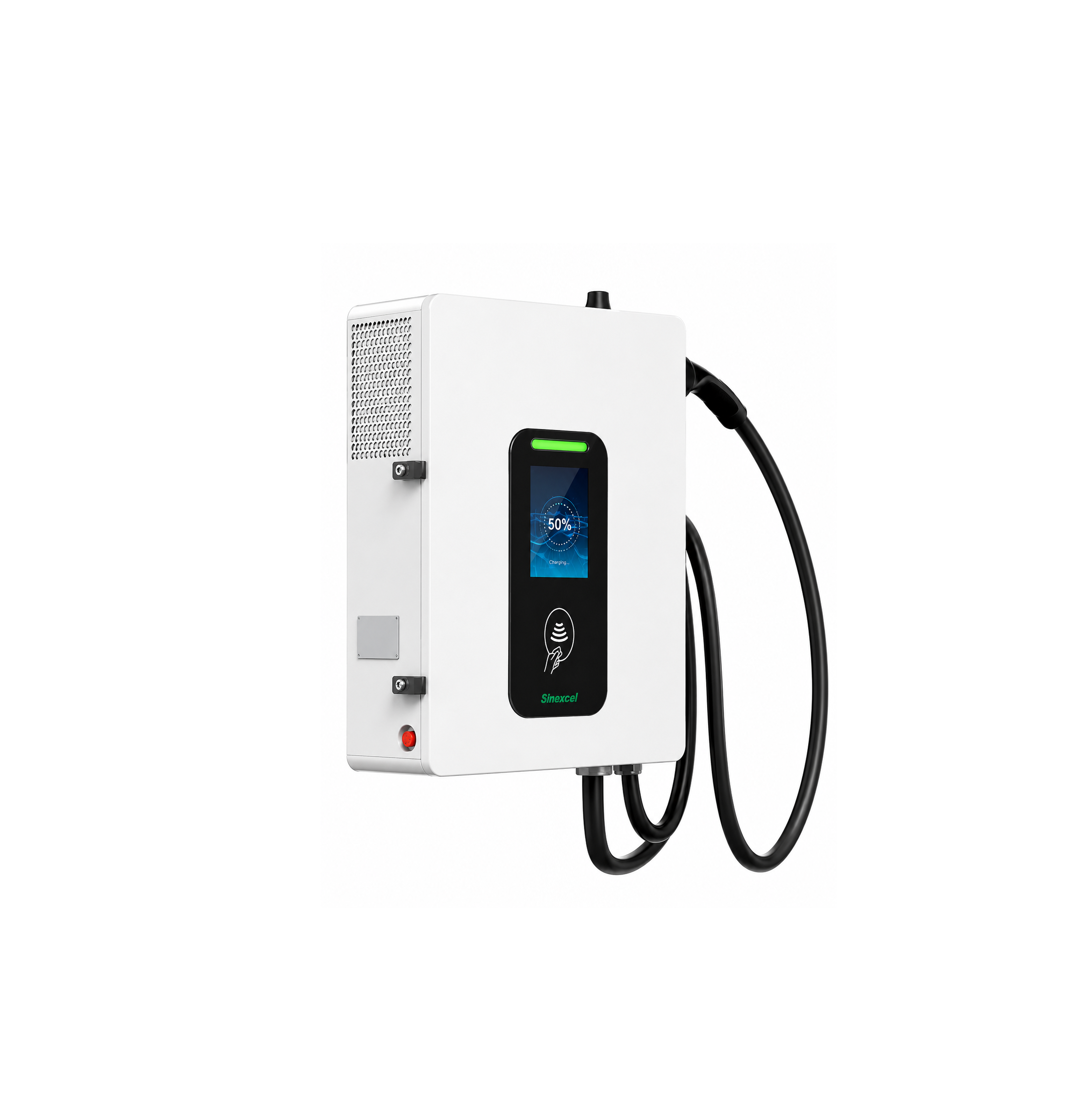

SINEXCEL 30kW DC charger.png
Portable SINEXCEL 30kW DC charger.png
30kW DC Integrated DC Charger.png
SINEXCEL 30kW DC charger.png

SINEXCEL 30kW DC Integrated DC Charger

$0.00

  • Charging Capacity: Up to 30 kW DC

  • Outlet Port: Single connector (1 output)

  • Connector: Standard CCS2 (80A) / Optional CCS2 (125A) / Optional CHAdeMO (80A)

  • Cable Length: 5 m (4.5 m exposed from charger) / longer length optional

  • Output Voltage: CCS2: 50 – 1000 V DC, CHAdeMO: 50 – 500 V DC (constant power output 375–1000 V at 80 A with CCS2)

  • Output Current: Standard CCS2 80 A / Optional CCS2 125 A / CHAdeMO 80 A

  • Compatibility: Compatible with CCS2 and CHAdeMO EVs

  • Warranty: 3 years (extendable)

  • Charging Capacity: Up to 30 kW DC

  • Outlet Port: Single connector (1 output)

  • Connector: Standard CCS2 (80A) / Optional CCS2 (125A) / Optional CHAdeMO (80A)

  • Cable Length: 5 m (4.5 m exposed from charger) / longer length optional

  • Output Voltage: CCS2: 50 – 1000 V DC, CHAdeMO: 50 – 500 V DC (constant power output 375–1000 V at 80 A with CCS2)

  • Output Current: Standard CCS2 80 A / Optional CCS2 125 A / CHAdeMO 80 A

  • Compatibility: Compatible with CCS2 and CHAdeMO EVs

  • Warranty: 3 years (extendable)

The SINEXCEL SEC30 is a compact, all-in-one 30kW DC fast charger designed for flexible deployment across commercial and fleet applications. Featuring dual CCS2 charging outputs, a 7-inch touchscreen interface, RFID authentication, OCPP compatibility, and a compact footprint, it delivers reliable DC charging without requiring extensive infrastructure upgrades. Its integrated design makes installation simple while providing intelligent operation and remote management capabilities.

Flexible Use Cases:

• Car Dealerships – Rapid charging for demo vehicles, customer vehicles, and showroom fleets

• Workplaces & Commercial Buildings – Convenient employee and visitor charging with access control and billing integration

• Fleet & Logistics Operations – Reliable charging for company vehicles, delivery fleets, and service vehicles

• Hotels, Motels & Destination Charging – Fast charging for guests seeking shorter charging times than traditional AC chargers

• Public & Community Charging – Ideal for councils, retail centres, clubs, and public charging locations looking to generate additional revenue

• Industrial Sites & Depots – Compact DC charging solution where space is limited but faster charging is required

    • Operating Temperature: -30°C to +50°C

    • Weather Proofing: IP54

    • Impact Resistance: IK10

    • Connectivity: Wi-Fi, Cellular/GPS, Ethernet

    • Status Indication: 7-inch touchscreen display / charging status LEDs / QR code monitoring

    • Protocols: OCPP 1.6J / OCPP 2.0.1

    • User Authentication: RFID

    • Emergency Stop Button: Yes

    • Load Management: supported

    • Function Access Control: Yes

    • Dimensions – 550 (W) × 700 (D) × 200 (H) mm

    • Weight – ≤ 65 kg

    • Screen Type – 7-inch touchscreen display

    • Screen Capability – Charging control, QR-code session monitoring, and backend integration

    • Advertising & Revenue Management – Compatible with commercial charging management, monitoring, and billing platforms

    • Mounting Options – Portable design suitable for temporary or permanent installation

  • SINEXCEL 30kW DC Integrated DC Charger
