Smappee EV Ultra 40D – 120D

$0.00

*Please contact for a quote

  • Charging Capacity: 40 kW (40D) / 120 kW (120D) — dual outputs

  • Outlet Port: 2 (dual)

  • Connector: 2 × CCS2,

  • Cable Length: Tethered (5 m)

  • Output Voltage: 100–1000 V DC

  • Output Current: 500 A max (boost mode)

  • Compatibility: All EVs

  • Warranty: 24 months (extendable)

*Please contact for a quote

  • Charging Capacity: 40 kW (40D) / 120 kW (120D) — dual outputs

  • Outlet Port: 2 (dual)

  • Connector: 2 × CCS2,

  • Cable Length: Tethered (5 m)

  • Output Voltage: 100–1000 V DC

  • Output Current: 500 A max (boost mode)

  • Compatibility: All EVs

  • Warranty: 24 months (extendable)

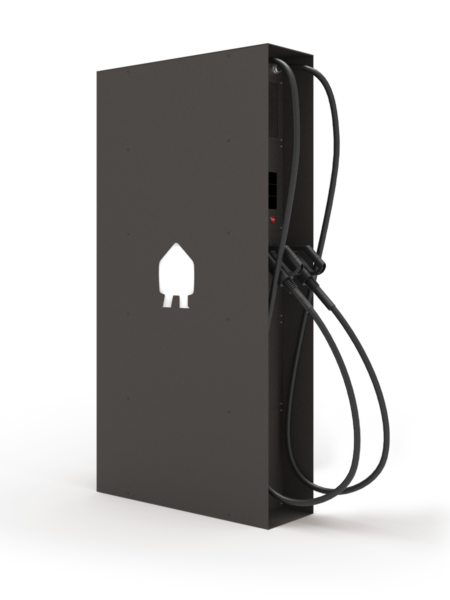

Smappee Ultra-Fast Duo Charger

The Smappee EV Ultra Dual is a ground-mounted DC fast charger with two CCS2 connectors, delivering up to 240kW total power across both ports. With built-in dynamic load-balancing and Smappee's smart charging platform, it is the ultimate twin-port solution for high-traffic, short-stop charging locations.

Flexible Use Cases:

•       Offices & Business Parks – Twin-port top-ups for staff and visitors

•       Commercial Fleets – Back-to-back fleet charging in under 30 minutes

•       Public Charging – 30 min – 2 hr dwell times (airports, hotels, supermarkets)

•       Future Expansion – Easily scale your charging square with both AC and DC options

SPECIFICATIONS

  • Operating Temperature: -25°C to +50°C (power derating from 40°C)

  • Weather Proofing: IP54

  • Impact Resistance: IK10

  • Connectivity: Ethernet 100BASE-T, LTE Cat M1 (4G)

  • Status Indication: 6.5-inch RGB display / backend monitoring platform

  • Protocols: OCPP 1.6J (ready for update to OCPP 2.0.1)

  • User Authentication: QR code, RFID, optional payment terminal

  • Emergency Stop Button: Yes

  • Load Management: Dynamic and cluster load balancing supported

  • Function Access Control: Yes

  • Dimensions (HxWxD): 1870 × 920 × 325 mm

  • Weight: EV Ultra 40D: Approx. 240 kg, EV Ultra 120D: Approx. 340 kg

  • Screen Type: 6.5-inch RGB display

  • Screen Capability: Charging status monitoring, charging instructions, backend integration, and payment support

  • Advertising & Revenue: Supports commercial charging management, remote monitoring, tariff management, RFID billing, optional payment terminal, and CPO integration

  • Mounting: Floor-mounted with supplied anchor
